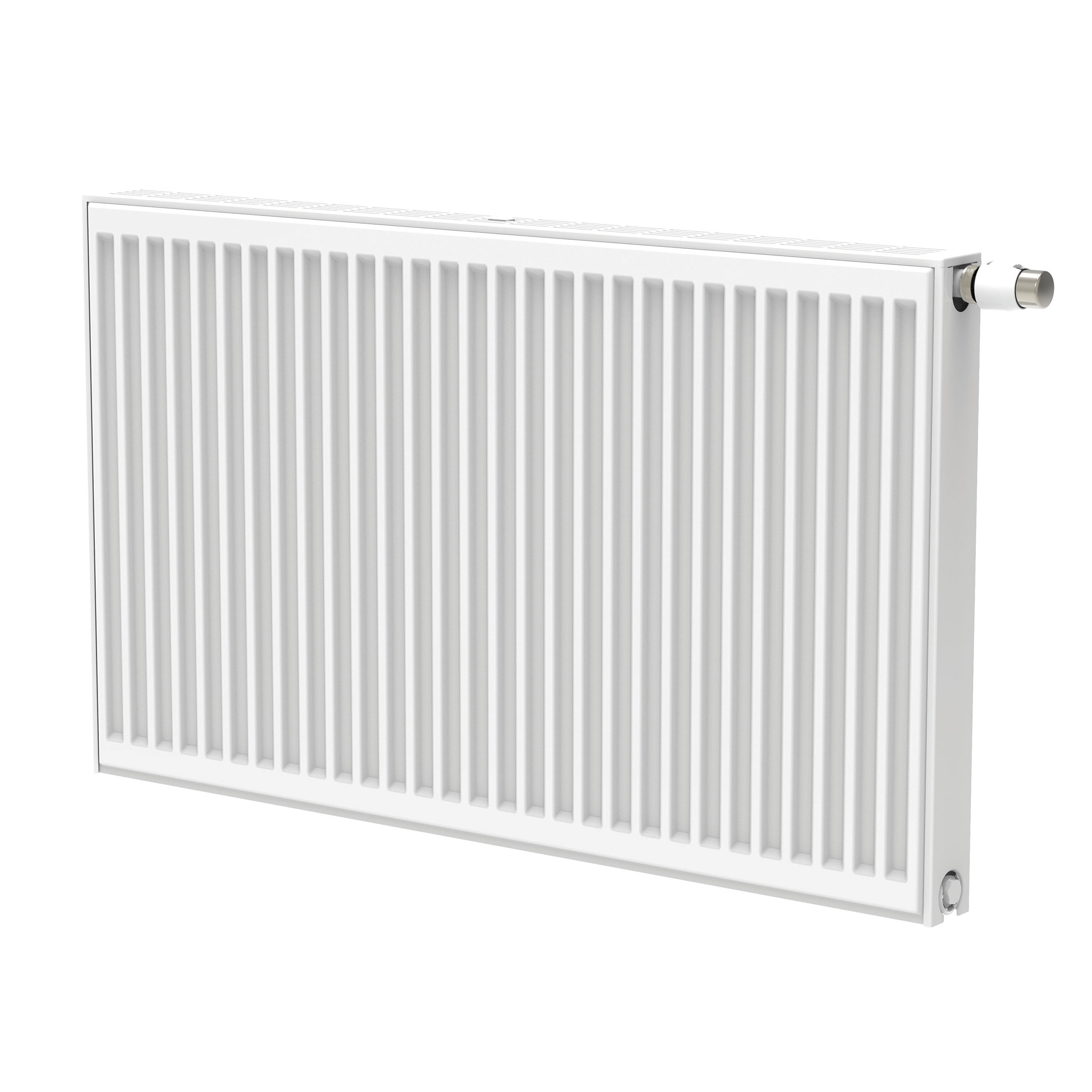

The panel radiators, which we offer, come with a standard front that is finished with side and top grilles. The color of the radiator is satin white (RAL 9016).

The radiator has a center bottom connection & a side connection (1/2″ euro cone female thread), either right or left with a standard center distance of 50 mm.

The radiator is Type 22 (double place, double convector) and is therefore 10.3 cm thick. After hanging the radiator itself, the radiator rises a total of 14.8 cm from the wall.

We recommend that you order a connection set with this radiator, so that you have all the parts to hang and connect the radiator.

This connection set is fully compatible with this radiator, thus guaranteeing you a quick and optimal installation.

– Connection package 1: If the pipes come from the floor center below the radiator and must go RIGHT into the radiator.

– Connection package 2: If the pipes come out of the back wall center below the radiator and need to go into the radiator RIGHT.

This set includes all parts including adapters (15 mm central heating pipes & 16 mm flexible pipes) to connect the radiator. Also, there is a thermostatic faucet.

The required kit can be found under the related products.

The panel radiator comes with:

– Front mounted side and top grilles

– Brackets for wall mounting

– Fastening set consisting of wood threaded bolts + dowels

– Rotatable vent plug 1/2”

– Blind plug 1/2”
